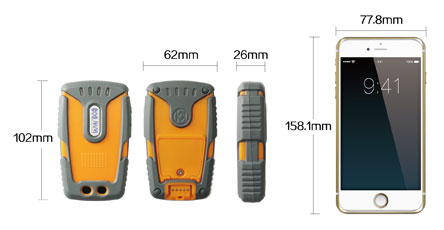

Dimension - |
Height 102mm
Width 62mm
Thickness 26mm
Weight 144g |
 |
Color |
Yellow |
IP Rate |
IP67 |
Operating Temperature |
-25℃~+85℃ |
Reading Mode |
RFID 125 KHz
Reading distance
3cm -5cm |
Communication |
USB，(CP2102，USB2.0) upload data 15000 pieces per min
GPRS real time data transmission |
| Battery |
Rated voltage: 3.7V
Rated capacity: 2000Amh
Dimension: 69mm×41mm×6.3mm |
Standby time |
1. ≥30days(device turned on, but doesn’t register with GPRS network
2. ≥4days(500 readings and transfer per day)
3. ≥16hours(continually sending data ) |
Data Storage |
16Mbit flash, 15,000 pieces |
Prompt |

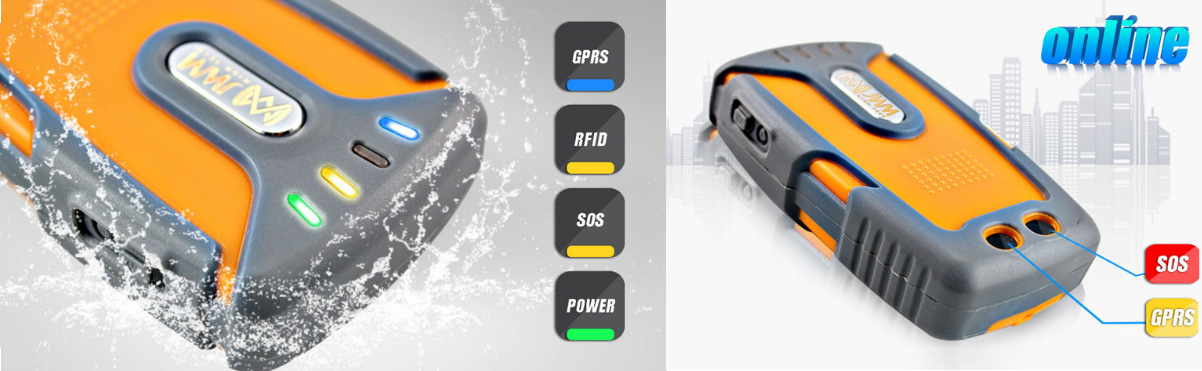

Vibration with Colorful LED light. Red, Green, Blue, White. |
Tag ID number |
1.8 bit Hexadecimal number in reader (4 byte ), and 10 bit decimalism number in the software.
2.Can be expanded to 10 bit Hexadecimal number ( 5 byte ). |
