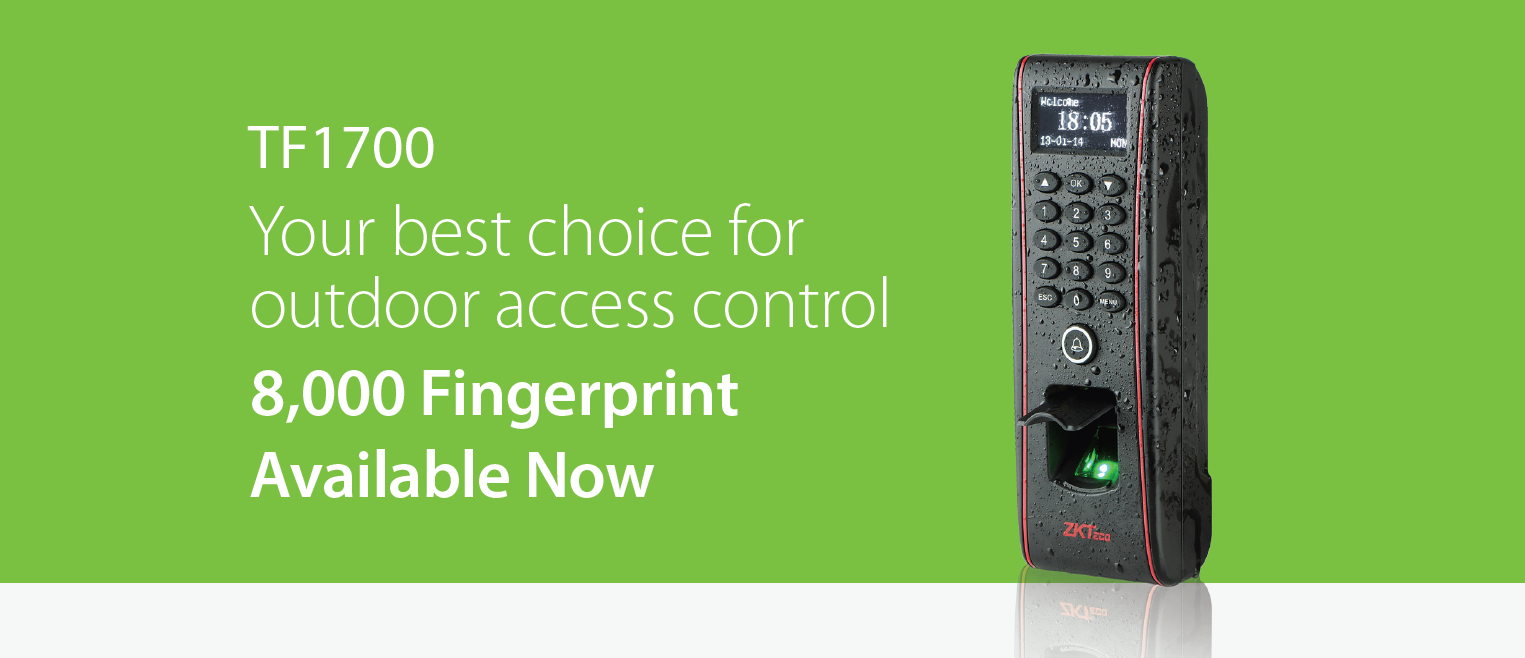

Biometric Access Control System - i4 TF1700



Brief Introduction :

TF1700 is Reliable, durable and highly accurate ZK fingerprint sensor with ver. 10 algorithm provides less than 1.5 second user recognition. Works without computer. Complete setup and programming can be done via keypads and embedded firmware. Audio-Visual Indication for acceptance and rejection of valid/invalid fingerprints. Relay Outputs for electric lock and alarm. Inputs for door status sensor and exit switch. Supports multiple timezones and personnel groups for programming valid entry zones.

IP65 rated waterproof enclosure permits this reader to be used for outdoor applications. Can store up to 3000 fingerprint templates, 10,000 cards and 100000 transactions. The data can be backed up to a SD Card and can also be transferred to another reader in the absence of computer connectivity. Internal Proximity Card or Mifare Card reader allows dual factor authentication for access control.


  • Features :

    1.Rugged structure for outdoor installation and extra durability

    2.IP65 rated waterproof and weatherproof structure

    3.Slim and elegant design

    4.One of the world's smallest fingerprint terminals.

    5.Sleek and slim design for narrow spaces

    6.Fast and accurate fingerprint algorithm

    7.Fingerprint identification in 1 second

    8.Stores 3000 fingerprint templates, 10,000 cards and 1,00,000 transactions

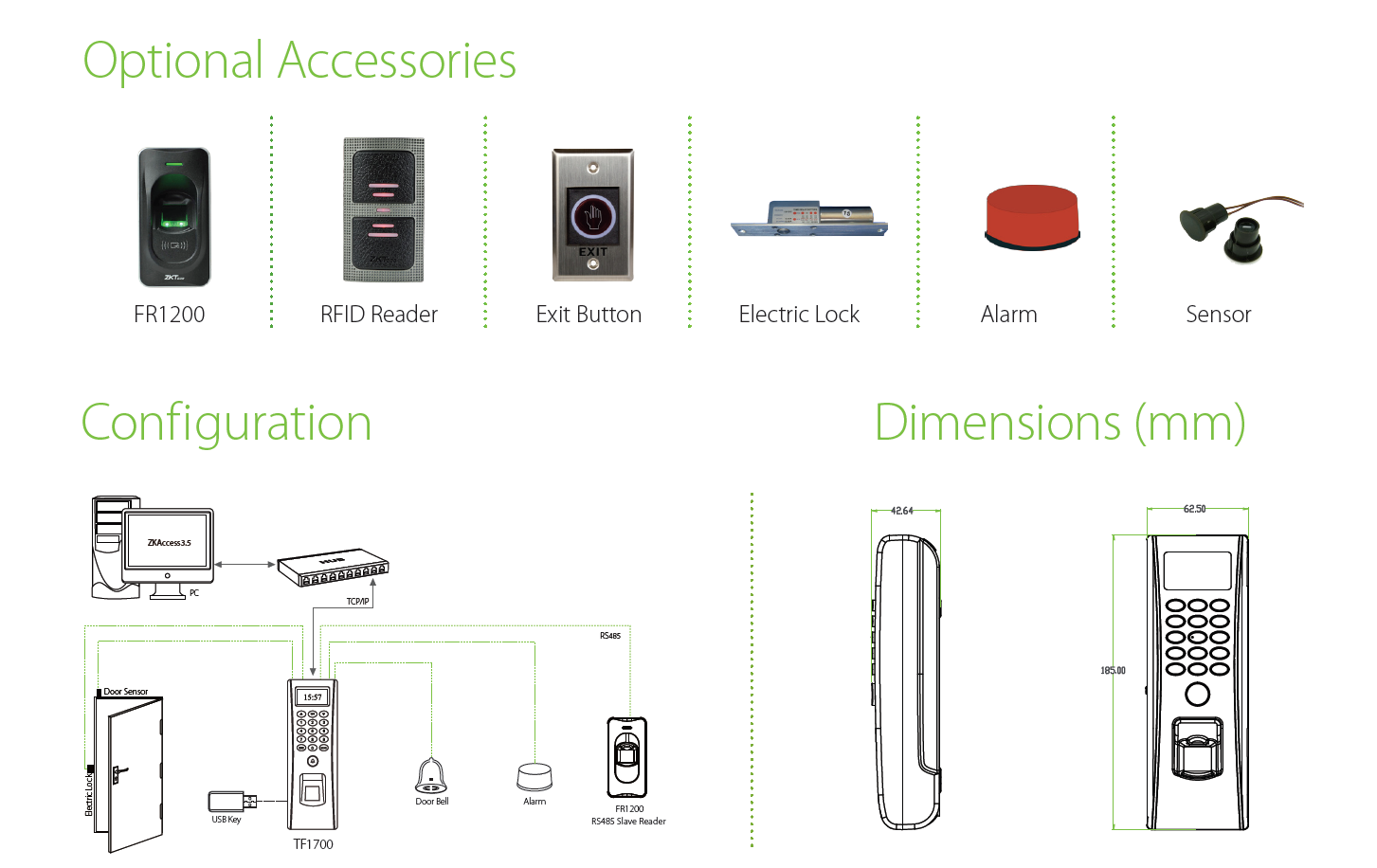

    9.Easy installation and connectivity with Wiegand input and output and network interface by T CP/IP and RS485

    10.Full access control features include DLST, Web-server, Anti-Passback and access control in terface for third party electric lock, door sensor, exit button and alarm

    11.Easy operation and management; works without computer and has built-in keypad and RF card reader for multi-modal authentication

  • Specification :




         128MB flash + 32MB RAM


         TCP/IP, RS485,USB-host

    Fingerprint Capacity

         3,000/8000 fingerprints

    Log Capacity

         1,00,000 events

    RF Card

         Mifare (13.56 MHz)/ EM(125 KHz)


         Finger / PIN / Card


         Wiegand in/out

    Ingress Protection Rate

         IP65 standard


         128 x 64 OLED with white color


         3 x 5 keypads & doorbell



    Operating Voltage


    Operating Temperature

        -10℃~ 50℃ (14°F~ 122°F)
