Brief Introduction :
SC800 is a Linux-based and waterproof RFID Access Control terminal that is designed for outdoor application. This terminal adopts a metal midframe housing and a 2.5D tempered glass panel, supporting IP65 waterproof and IK04 vandal proof.
Besides, SC800 has a 2.4 inch color screen and a hidden touch keypad to enhance the touchless unlocking experience. SC800 offers the Multi-tech RFID module that supports 125kHz and 13.56MHz card, support HID Prox and HID iclass Multi-Tech RFID Module. In addition, SC800 supports Access Control push communication protocol and it is compatible with easy TimePro software.

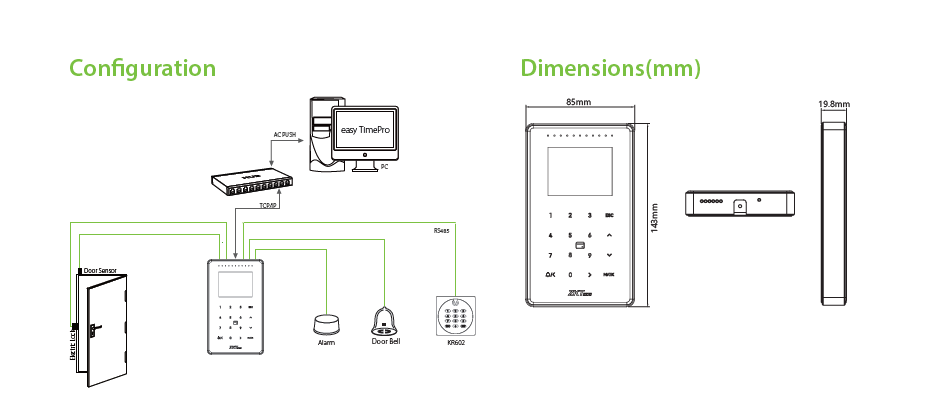

This terminal also includes a Wiegand Input port to connect the external proximity reader and can be act as controller’s external reader using a Wiegand Output port.
Features :
1. IP65 water and dust resistant, IK04 vandal proof
2. Supports multiple RFID modules and up to 100+ card types (including, ID / IC / Felica / Legic / DESfire EV1 / EV2 / HID
Prox / HID iClass / etc.
3. Support Access Control push conversion to Time Attendance push
4. Communication: TCP/IP, Wi-FI (Optional), Wiegand in&out, RS485, OSDP (Ver2.1.7), RS232 (for printer)
5. Embedded web server for system configuration
6. Fully complied with ZKCSBL (ZKTeco Cyber Security Base Line). Standard to provide advance protection
Specification :
Model |
SC800 |
LCD |
2.4 inch TFT LCD Color Screen |
Communication |
TCP / IP, Wiegand, RS485, OSDP (Ver2.1.7), RS232 (only for printer), Wi-FI (Optional) |
Card Capacity (Optional) |
50,000 (Optional: 100,000) |
Records Capacity |
200,000 (Optional: 1000,000) |
Access Control Interface |
3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell |
Wiegand Signal |
Wiegand In / Out |
Aux. Input |
1 AUX input |
Power Supply |
DC 12V 3A |
Operating Temerature |
-10°C to 55°C (14°F to 131°F) |
Operating Humidity |
10% to 90% RH |
Dimension(L*W*H) |
143*85*19.8mm (L*W*D) |
|
